Short description

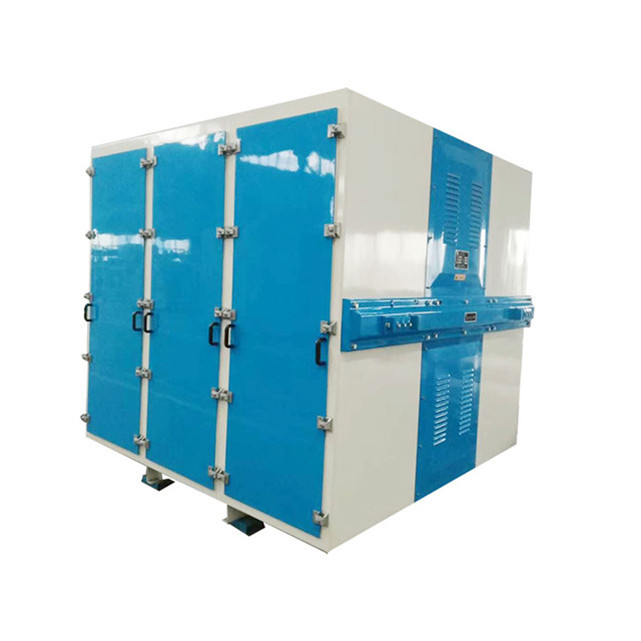

As one of the most essential machines in the flour production line, the FSFG series square plansifter is primarily applied to sift and grade the ground materials
As one of the most essential machines in the flour production line, the FSFG series square plansifter is primarily applied to sift and grade the ground materials, and it can work as an inspection sifter.
Aside from the food processing industry, it also fits for the manufacturing of wine, medicine, plastics, chemicals, and other powder-related products. This device is widely accepted on the market as a result of its remarkable characteristics.
项目Item | 6×24 | 6×16 |
筛格Number of bins | 6 | 6 |
筛网Number of Grid/bin | 22—24 | 15-18 |
筛里面积Screening Area(㎡) | 52 m2 | 30.24 m2 |
转速Spindle Revolution | 245 r/min | 245 r/min |
回转直径Turning Diameter | 64±1mm | 64±1mm |
最低安装高度Minimum Installation Height | 3500mm | 3000mm |
电机Transmission motor | Y112M-6(5.5KW) | Y132S-6 (3KW) |
Screening Chest Height | 2240mm | 1870mm |
网格配置高度Grid Configuration Height | 2190mm | 1600mm |
Weight | 3500kg | 3100kg |
Dimension | 2510×1640 ×2440 | 2510×2500×1940 |
We have been an internationally renowned food processing equipment manufacturer for more than 30 years with a professional technical research and development team.
We have been focusing on the production of grain processing machinery and equipment for more than 30 years, gathered a large number of industry senior experts and engineers team, invented dozens of technical patents, product quality, and technology leading international, and have a perfect after-sales service team.
Please let us know the machine capacity you need, like 10t/d, 20t/d, 30t/d, 50t/d, etc; And the fineness of finished flour you want to get after milling; Other information like workshop size, local voltage, etc. We will make a quotation for you based on your requirements.
Certainly, we will send you the Operating video & instructions to you together with the machines, to help you use the machines better.
Before delivery, we will test and adjust the machine’s working condition for you, then you can use it directly when you get it.
T/T would be better with a quick transfer and a few bank fees. L/C could also be accepted, but the procedure is complex and the fee is high. You can also use Western Union and Paypal.
The answer is No, because the maize and wheat’s Physical Characteristics are different, like the shape, and the hardness, all are different, so they need different production technology. If you also need the maize milling machine, we can also offer you.
YES! One maize flour milling line can produce different sizes of maize flour and maize grits at the same time.
Semolina(very high gluten)–Pasta flour (gluten >13%)—Bread
Plain flour (gluten 9%-12%)–Noodle, Steamed bread Soft flour (gluten<8%)—Cake, Biscuit
Your don’t need to worry about anything, Our professional Chinese engineer will go to your country to help you install the machinery and train workers.
*Training how to install the machine, training how to use the machine, maintenance.
* Engineers available to service machinery overseas. Providing professional support for the consultation of engineering technology and technical problem.
