Product Information
Short description
This 100TPD wheat flour mill plant adopts a high square plansifter, manual or pneumatic mill and purifier, and other high-quality flour milling equipment with advanced milling technology.
Key features:
- Using advanced technology
- fully automatic, high quality
- Stainless steel pipes.
Brief Description
This wheat flour mill plant adopts a high square plansifter, manual or pneumatic mill and purifier, and other high-quality flour milling equipment with advanced milling technology.

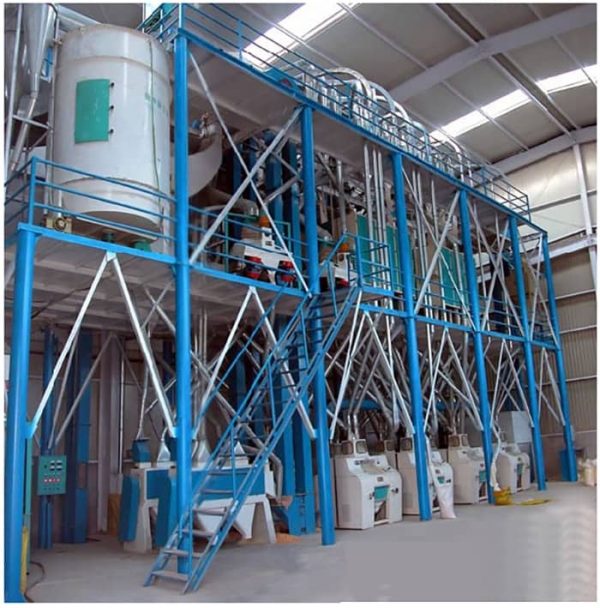

The wheat flour mill plant belongs to a steel structure, It can save factory area, decrease workshop cost, and decrease the construction period. This wheat flour mill plant can be used to produce 1st and 2nd Grade flour as well as special flour.
- Process Design
- Factory Layout
- Best Quality
Product Features
- Complete production line, including cleaning, grinding, packaging control system.
- Using advanced technology to produce ultrafine wheat flour.
- The pipes are stainless steel.
- Operated by PLC control system, fully automatic.
| Type | Product | Power(kW) | Workshop Size(L*W*H)m |
| 20T | Special purpose flour Grade 2 Standard flour | 45 | 25*8*5.5 |
| 40T | 65 | 25*8*7 | |
| 50T | 85 | 30*8*7.5 | |
| 80T | Special purpose flour Grade 1 Grade 2 Standard flour | 180 | 38*10*12.5 |
| 100T | 340 | 40*10*12.5 | |
| 120T | 420 | 43*10*12.5 | |
| 140T | 530 | 47*10*12.5 | |
| 150T | 540 | 49*10*12.5 | |
| 200T | 722 | 50*12*12.5 |
Process Overview

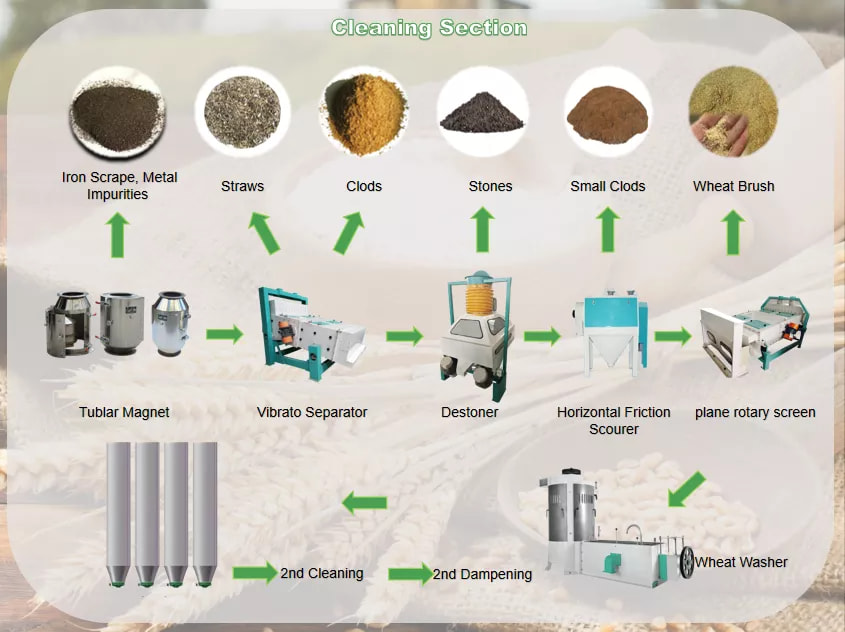

Cleaning Section
This series of production lines cleaning part use 6 times cleaning machines. In the cleaning section, there are several aspiration systems that can reduce the dust spray-out from the machine and keep a good working environment.
This is a complicated thorough flow sheet that can remove most of the coarse offal, middle size offal, and fine offal in the grain. The cleaning section is not only suitable for grain imported with lower moisture but also suitable for dirty grain from local customers.
Milling And Section

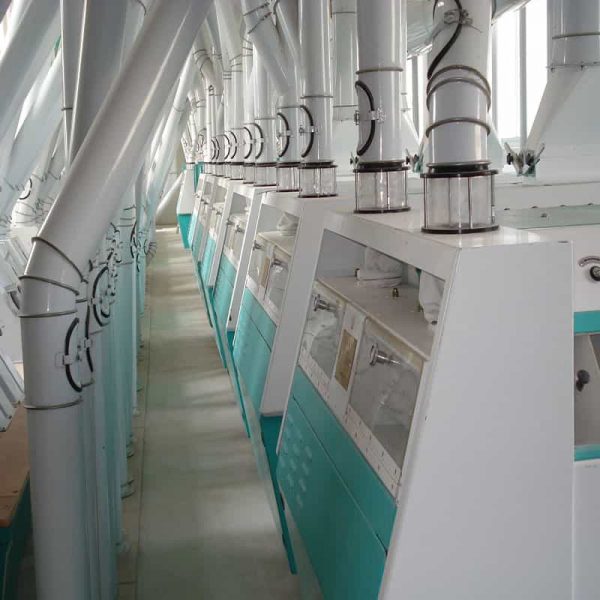

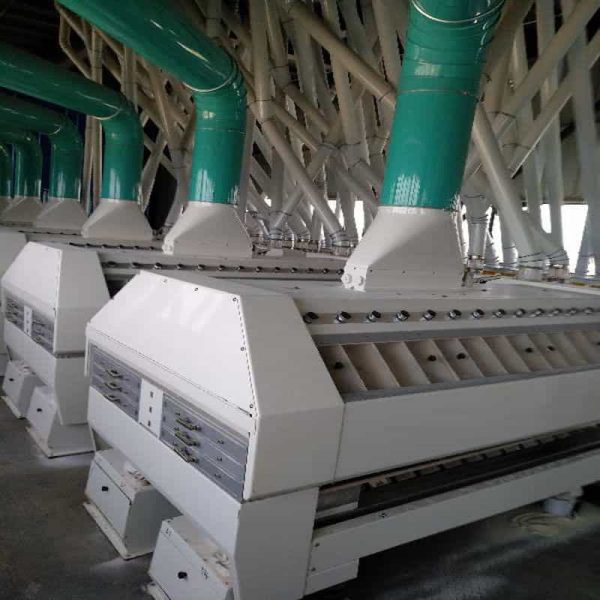

In the milling and sieve section, there are four types of systems to mill the wheat to flour. They are 5-Break system, 7-Reduction system, 2-Scratch system, and 2-Tail system. Purifiers are specially designed to get more pure semolina sent to the Reduction which improves the flour quality by a large margin. The rollers for Reduction, Semolina, and Tail systems are smooth rollers that are well blasted.
The whole design will insure less bran is mixed into the bran and the flour yield is maximized. Because of the well-designed pneumatic lifting system, the whole mill material is transferred by a High-pressure fan. The milling room will be clean and sanitary for aspiration adoption.

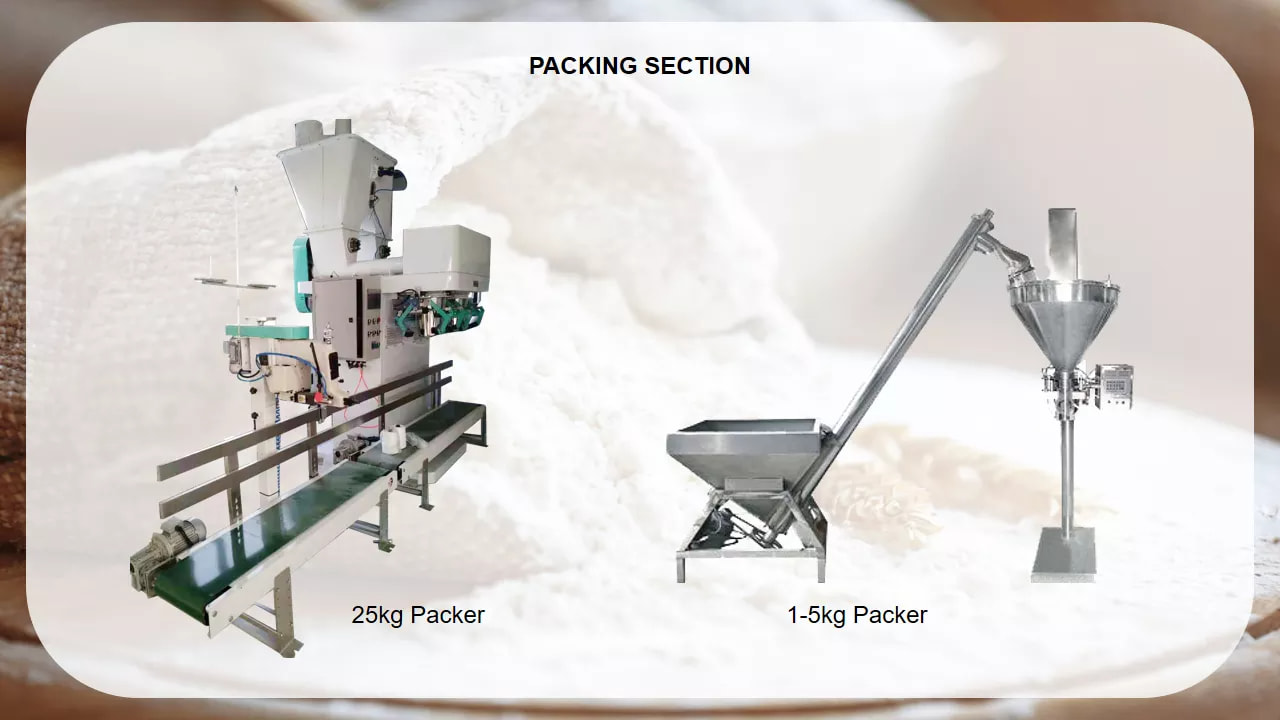

Packing Part
All packing machines are automatic. The packing machine has advantages of high measuring accuracy, fastpacking speed, reliable and stable working. The packing machine has the function of fault self-diagnosis. Its sewing machine has automatic sewing and cutting function.
The packing machine is with sealed type bag-clamping mechanism, which can prevent material from leaking out.There are many types of specification like 1-5kg,2.5-10kg,20-25kg,30-50kg.The clients can choose different packing specifications according to requirements.

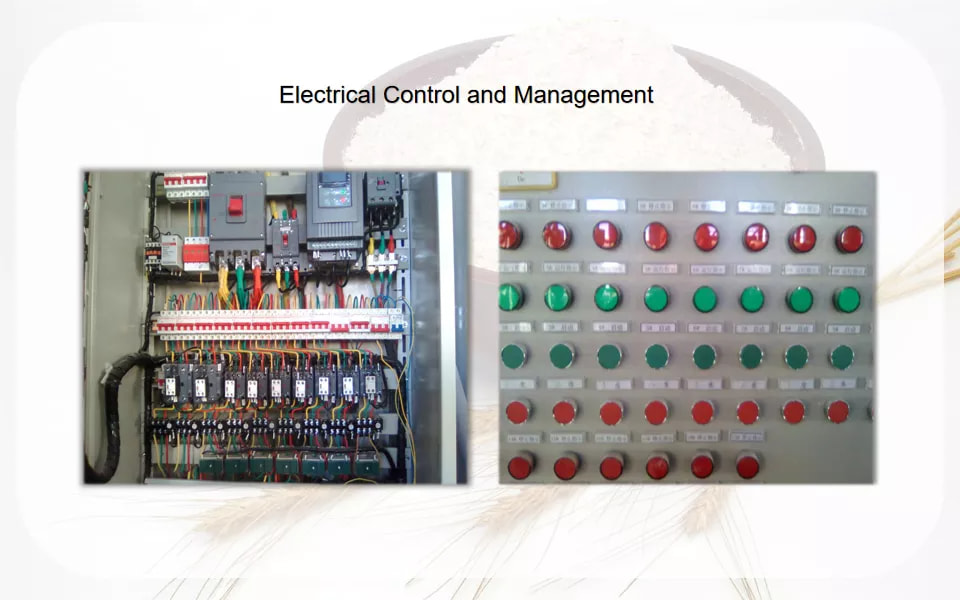

Electrical Control, And Management
In this part, we will supply an electrical control cabinet, signal cable, cable trays and cable ladders, and other electrical installation parts.
With a PLC control system, all the machinery will be controlled by Programmed Logical Controller. This will ensure the stable operation of machinery.
FAQs
We have a variety of grain processing production lines and stand-alone equipment, if you have special needs, you can also customize production according to your needs.
We have been focusing on the production of grain processing machinery and equipment for more than 30 years, gathered a large number of industry senior experts and engineers team, invented dozens of technical patents, product quality, and technology leading international, and have a perfect after-sales service team.
Please let us know the machine capacity you need, like 10t/d, 20t/d, 30t/d, 50t/d, etc; And the fineness of finished flour you want to get after milling; Other information like workshop size, local voltage, etc. We will make a quotation for you based on your requirements.
The answer is No, because the maize and wheat’s Physical Characteristics are different, like the shape, and the hardness, all are different, so they need different production technology. If you also need the maize milling machine, we can also offer you.
